Di Monti Roca RS Frame
$8.990.000,00 $8.990.000,00
In stock: 2
1,190 gFrame (52)
54 mmMax tire
45–607 sizes

Roca RS essentials

  • Tires up to 700×54 mm
  • Internal storage
  • Integrated flared bar
  • Universal UDH hanger
Pintura personalizada No extra costRender for your approval · ready in 3 weeks max ›
Talk to an advisor on WhatsApp
Description

The Roca RS frame kit, to build your gravel bike with the components you choose.

This frame kit

  • Frame Toray T800 carbon · 1,190 g ±5% (size 52)
  • Fork Toray T800 carbon
  • Handlebar Integrated carbon with flare · 370 g · 380/400/420 mm
  • Stem 90 / 100 / 110 / 120 mm

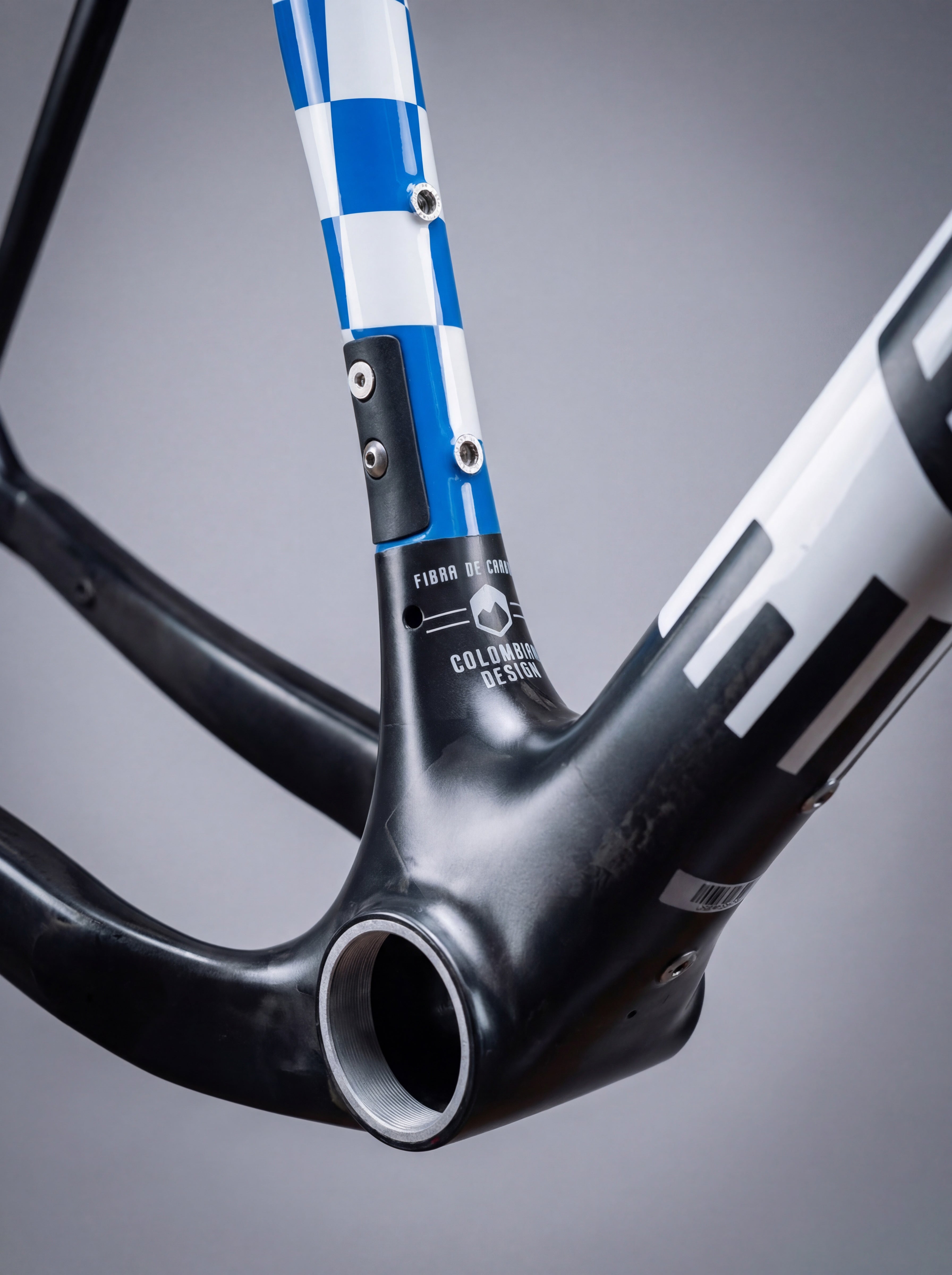

  • Bottom bracket Threaded T47, 85.5 mm
  • Axles 12×100 / 12×142 mm
  • Max tire 700×54 mm or 650B×2.2"

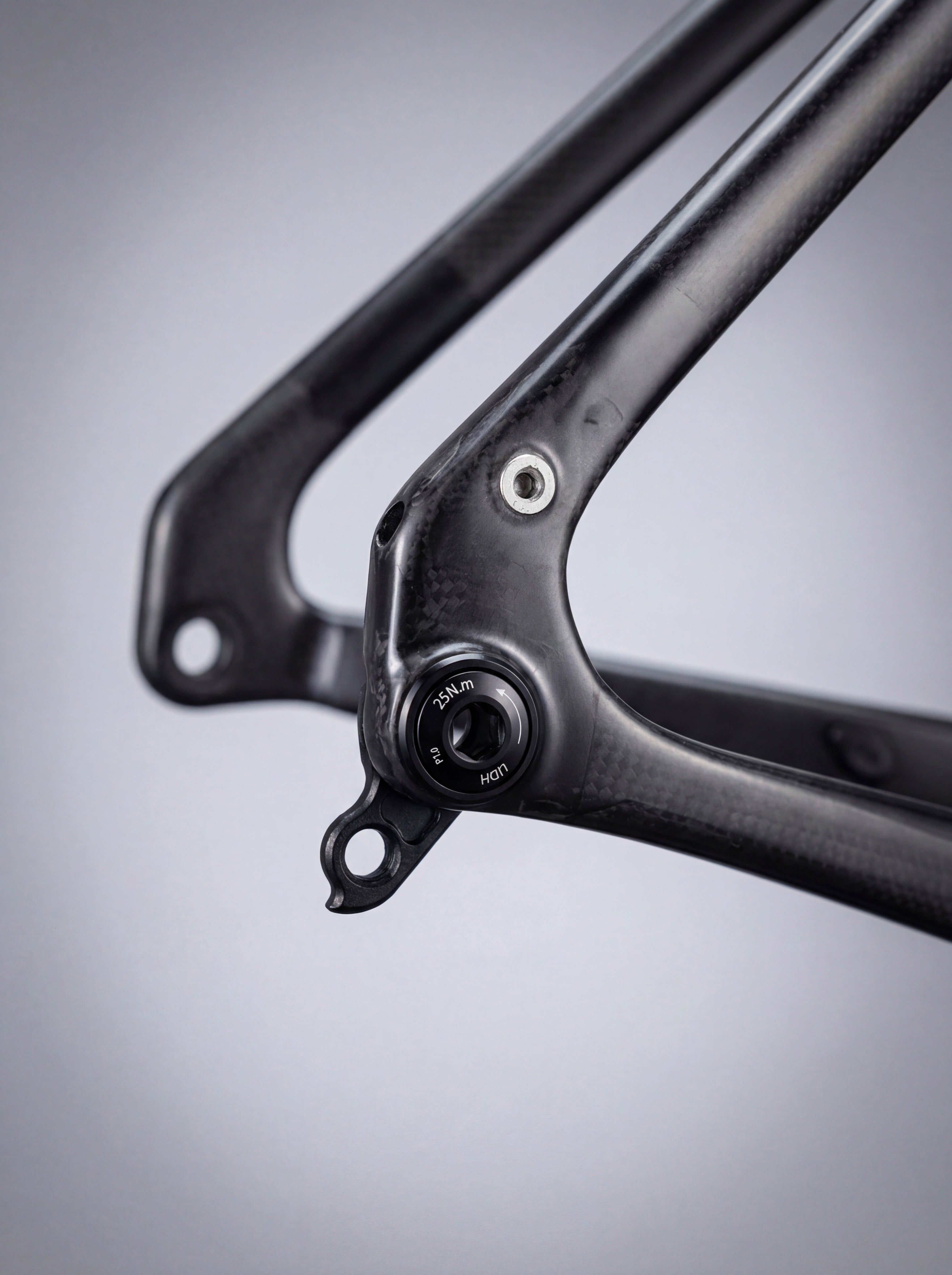

  • Hanger Universal UDH, replaceable
  • Routing 100% internal
  • Max weight 120 kg

Why Roca RS

  • Geometry Relaxed head angle and long wheelbase: stability on rough terrain
  • Storage Internal frame compartment
  • Paint Custom at no extra cost · render for your approval · ready in 3 weeks max
  • Warranty 5 years on frame and fork · Crash Replacement 2 years

Images for reference. If you want a different component combination, message us.
Gravel · long distance

Built to leave the pavement

Geometry designed for gravel, ultra-distance and bikepacking: stable on rough roads, agile on climbs and comfortable for hours.

Tire clearance

Up to 700×54 mm

Or 650B×2.2": from fast roads to demanding trails.

Geometry

Stable and agile

Relaxed head angle, 433 mm chainstays and 79 mm BB drop.

Bikepacking

Internal storage

Integrated frame storage and universal UDH mount.

Control

Flared bar

Integrated carbon, flared at the drops for more control on descents.

No additional cost
Custom paint

Your Roca RS, your paint

Custom paint is included in the price. We design it ourselves, based on what you like.

  1. Tell us which colors you like.
  2. Choose a starting point: one of our existing designs or a completely new one, created for you.
  3. We send you the render of your bike for approval.
  4. Once approved, in 2 weeks your bike is painted and ready.
Design and renderPaint and build · 2 weeks

The whole process: 3 weeks max until your bike is ready.

Design your paint on WhatsApp
Di Monti Roca RS with custom paint
Roca RS

Geometry and specifications

7 sizes. Tap a size to highlight its measurements.

Measurement45495254565860
Stack mm512531549566586611640
Reach mm373373379383387390396
Top tube mm510515536.4551566577592
Seat tube mm450490520540560580610
Head tube mm7998.5107134145171200
Head tube angle69°69.5°70°70°72.2°72.3°72.6°
Seat tube angle75°75°74°73.5°73°73°73°
BB drop mm79797979797979
Fork length mm401.5401.5401.5401.5401.5401.5401.5
Chainstay length mm433433433433433433433

If you’re between two sizes or unsure about your measurements, message us and we’ll advise you before you buy.

Frame specifications

MaterialHigh-modulus T800 carbon
UseGravel · bikepacking
Bottom bracketThreaded T47
Thru-axles12 × 100 / 12 × 142 mm
Max tire700×54 mm or 650B×2.2"
Derailleur hangerUniversal UDH
Cable routing100% internal
StorageInternal, integrated

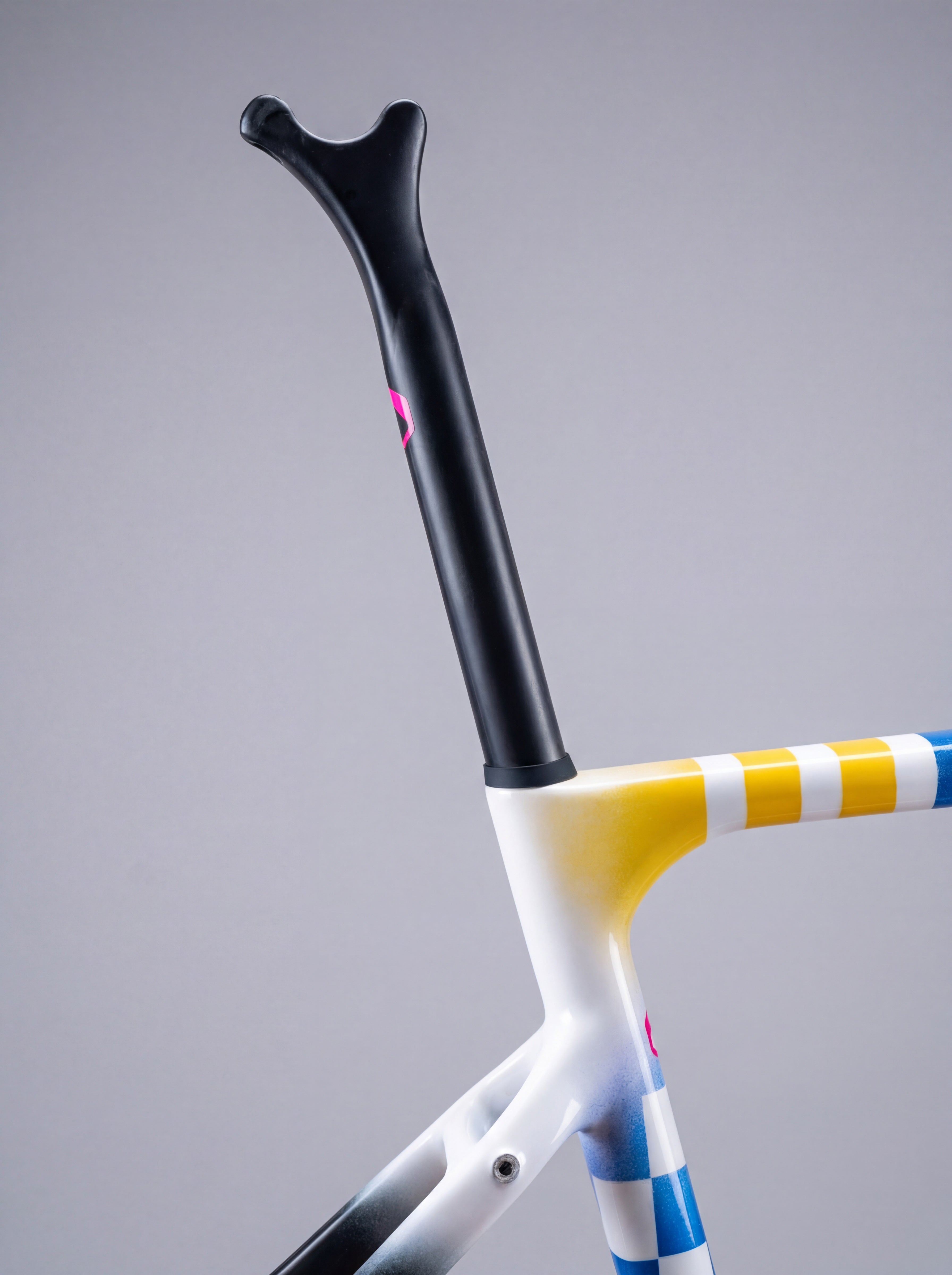

SeatpostFlex Confort 27.2 mm
Max weight120 kg

Weights

  • Frame (size 52)1,190 g ±5%
  • Integrated bar (42 × 9)370 g
  • Complete bikefrom 8.6 kg

What’s included with the frame

  • Frame
  • Fork
  • Flex Confort seatpost
  • Integrated flared bar
